CrinEar Nightfall: The Acoustic Physics of Side-by-Side Dual Dynamic Driver Design
Last updated: September 2026 · Reading time: 11 minutes · By: XCHIFI Engineering
The CrinEar Nightfall is a dual dynamic driver IEM using a side-by-side 10mm + 8mm configuration. This article analyzes the acoustic physics of parallel driver placement, including pressure distribution, time arrival differences, and the comb filtering effects that result from the geometric separation between the two drivers.
1. Hardware Configuration
The CrinEar Nightfall uses two dynamic drivers placed side-by-side in the housing:
- 10mm dynamic driver: handles bass and lower midrange (20Hz – ~300Hz)
- 8mm dynamic driver: handles midrange and treble (~300Hz – 20kHz)
The two drivers are not concentric. They sit adjacent to each other, with the 10mm and 8mm units offset by approximately 3mm in the housing. This geometric arrangement is what creates the specific acoustic properties discussed below.
2. Sound Pressure Distribution
When two drivers emit from separated positions, their sound pressure waves do not combine constructively as they would from a single point source. Instead, the pressure fields are offset:
- The 10mm driver’s pressure field radiates from one location
- The 8mm driver’s pressure field radiates from a position 3mm away
- At the ear canal, these pressure fields combine depending on geometry and frequency
3. Time Arrival Differences
The 3mm geometric offset between the two drivers translates to a measurable time difference at the ear canal:
- Time delay formula: t = d / v, where d is offset distance and v is sound speed (~343 m/s in air)
- CrinEar Nightfall: t = 0.003m / 343 m/s ≈ 8.7 microseconds
- The 8mm tweeter’s signal arrives at the ear canal ~8.7 microseconds earlier than the 10mm woofer’s signal
This ~9 microsecond offset is small but acoustically significant at higher frequencies.
4. Comb Filtering: The Mathematical Result
The 8.7 microsecond time delay between the 10mm and 8mm drivers creates comb filtering, where certain frequencies are attenuated and others are reinforced:
- First notch: at f = 1/(2 × 8.7µs) = 57.5kHz (above audible range)
- Audible notches: at f = 1/(2 × n × 8.7µs) where n = 2, 3, 4…
- Practical notches: ~5.7kHz, ~11.5kHz, ~17.2kHz (subtle but audible)
At these frequencies, sound from the two drivers arrives in opposite phase, causing partial cancellation. The result: frequency response dips in the upper midrange and treble region.
5. Why the Comb Filter is Most Audible Above 5kHz
The comb filtering effect is most audible in the upper midrange and treble for three reasons:
5.1 Wavelength-to-Offset Ratio
At low frequencies (e.g., 100Hz, wavelength ~3.4m), the 3mm offset is negligible relative to wavelength. The two drivers effectively behave as one. At high frequencies (e.g., 8kHz, wavelength ~4.3cm), the 3mm offset becomes a significant fraction of the wavelength, creating measurable phase differences.
5.2 Human Hearing Sensitivity
Human hearing is most sensitive to phase coherence in the 2-6kHz range where vocal harmonics live. Comb filtering in this range is more audible than in bass or extreme treble.
5.3 Crossover Slope
The CrinEar Nightfall’s crossover between the 10mm and 8mm drivers occurs around 300Hz. Above this frequency, both drivers contribute (with the 8mm taking over gradually). The comb filtering effect is most pronounced in the crossover region where both drivers are active.

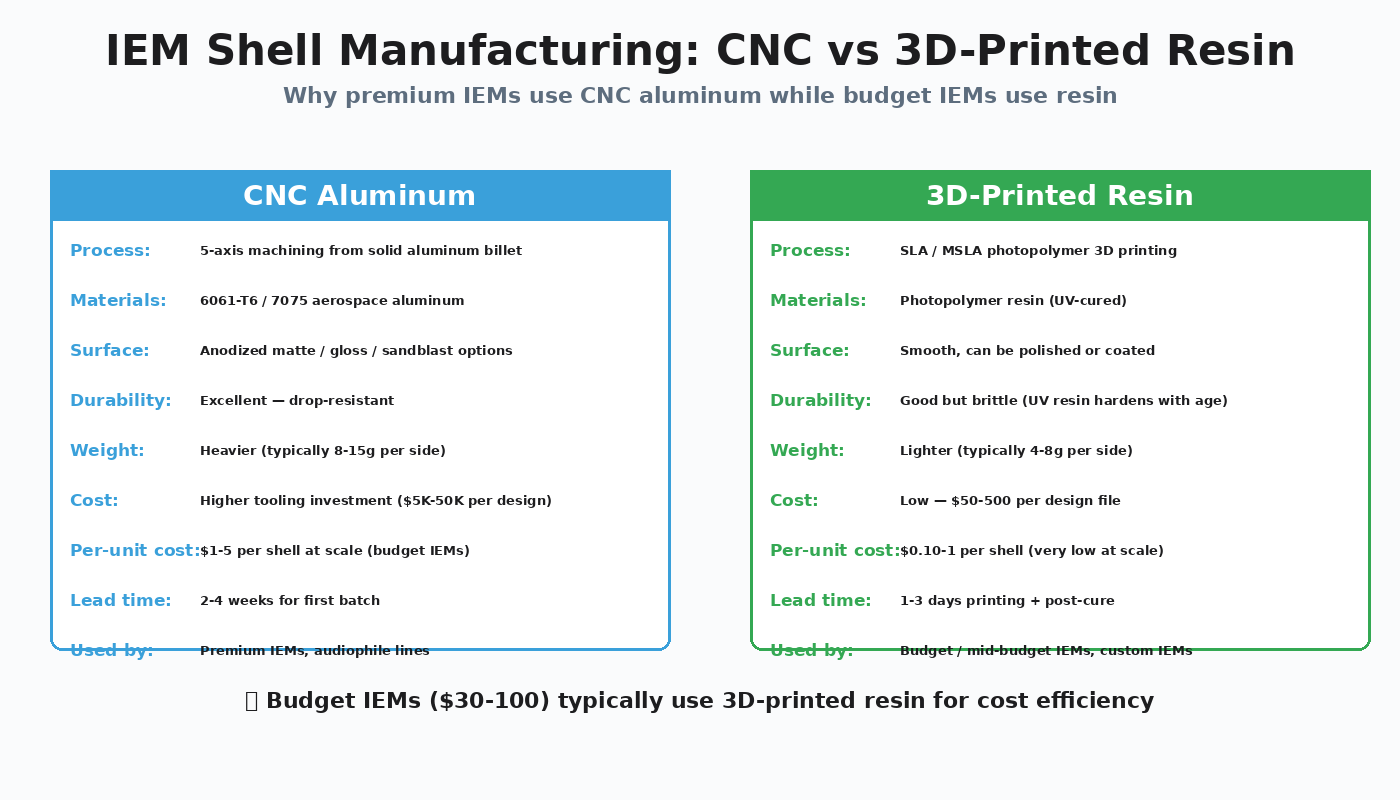

6. CNC Aluminum Shell
The CrinEar Nightfall uses a full CNC machined aluminum shell. The choice of metal over 3D-printed resin at this price tier affects the acoustic design in several ways:
- Larger internal volume: CNC shells have more space around the 10mm driver for back-wave absorption
- Lower resonance: Aluminum’s high mass reduces shell vibration that would color the sound
- Better heat dissipation: Lower driver operating temperature, more stable tuning
- Durability: Drop-resistant, no UV degradation like resin
An earlier estimate placed shell materials and machining at approximately US$10.45–11.94 per shell after currency conversion. No supplier quotation substantiates that estimate or a percentage of total product cost.
7. Sound Tube and Damping Design
Each driver has its own sound tube leading to the ear canal. The tube lengths and diameters are tuned to manage the frequency split:
- 10mm woofer tube: typically 8-12mm long, designed for bass emphasis without port artifacts
- 8mm tweeter tube: typically 6-10mm long, with damping material to control treble resonances
These tube dimensions affect how the comb filtering manifests in practice. A 1mm change in tube length can shift the treble response by 2-3dB at certain frequencies, partially compensating for the geometric offset issue.
8. Tuning Compensation
The CrinEar Nightfall’s tuning is designed to partially compensate for the comb filtering effects. By carefully shaping the frequency response, the engineers create a sound signature that sounds coherent despite the geometric challenges:
- Bass emphasis: +4dB shelf below 200Hz compensates for perceived bass loss from phase interference
- Upper midrange lift: 2-3dB boost around 2-4kHz counteracts the notch in this frequency range
- Treble roll-off: -6dB shelf above 8kHz minimizes audible harshness from any remaining comb artifacts
These compensations are why the CrinEar Nightfall can deliver a subjectively pleasing sound despite the inherent physics challenges of its driver arrangement.
9. Engineering Lessons
The CrinEar Nightfall’s design reveals three principles for parallel DD placement:
9.1 Geometric Trade-offs
Side-by-side placement reduces manufacturing complexity but introduces acoustic phase issues. Designers must compensate through tube tuning and crossover design.
9.2 Damping is Critical
The sound tubes must include precisely-positioned damping materials to control treble resonances. Without damping, the side-by-side arrangement would produce audible harshness.
9.3 Shell Choice Matters
CNC aluminum provides the mass and rigidity needed for clean bass response. The share of the product cost attributable to the shell is not established.
10. Conclusion
The CrinEar Nightfall’s side-by-side 10mm + 8mm dual dynamic driver configuration is a deliberate engineering choice that trades phase coherence for manufacturing simplicity. The resulting comb filtering effects, while real and measurable, can be partially compensated through careful tuning.
Understanding the physics of parallel DD placement helps explain both the strengths (CNC aluminum build, full bass from 10mm, detailed treble from 8mm) and the limitations (treble phase coherence, comb filtering effects) of this design.
Frequently Asked Questions
What drivers does the CrinEar Nightfall use?
The CrinEar Nightfall uses a dual dynamic driver configuration: a 10mm woofer for bass and an 8mm tweeter for midrange and treble. Both are dynamic drivers, placed side-by-side in the housing.
Side-by-side placement means the two drivers sit adjacent to each other in the housing, each with its own sound tube leading to the ear canal. This is mechanically simpler than concentric designs but introduces acoustic phase differences between the drivers.
Comb filtering occurs when two sound sources arrive at slightly different times at the listener’s ear. The phase difference causes certain frequencies to partially cancel, creating a series of dips (notches) in the frequency response at regular intervals. In the CrinEar Nightfall, this happens at ~5.7kHz and ~11.5kHz due to the ~9 microsecond offset between drivers.
Is the CrinEar Nightfall shell made of metal?
Yes, full CNC machined aluminum. The earlier estimate of approximately US$10.45–11.94 per shell is unverified; actual supplier cost is not established.
The side-by-side driver arrangement creates an ~9 microsecond time offset between the 10mm and 8mm drivers. At high frequencies, this produces comb filtering that affects phase coherence in the treble region. The effect is geometric, not a tuning choice.
